Forging Hydraulic Press: Heavy-Duty Metal Forming Solutions

Introduction

When manufacturing heavy machinery components, automotive parts, or aerospace fittings, the quality of your metal forming equipment Learn more about our Explore our full product catalog directly determines product integrity.A forging hydraulic press represents one of the most powerful and versatile solutions available for industrial metalworking operations today. These massive machines generate tremendous force through hydraulic systems, enabling manufacturers to shape steel, aluminum, and specialty alloys into complex geometries with exceptional precision.

The global industrial press market continues expanding as manufacturing sectors worldwide demand higher productivity and better quality control. Selecting the right forging hydraulic press for your operation requires understanding force capacity, stroke characteristics, bed dimensions, and control systems. This comprehensive guide examines everything procurement managers and production engineers need to know about investing in hydraulic press technology for metal forming applications.

By the end of this article, you will understand hydraulic press fundamentals, key selection criteria, maintenance best practices, and how leading manufacturers like Huzhou Press, a professional forging hydraulic press manufacturer, deliver solutions meeting international quality standards.

What is a Forging Hydraulic Press?

A forging hydraulic press is a heavy industrial machine that utilizes fluid pressure to generate compressive force for shaping metal workpieces. Unlike mechanical presses that rely on crankshafts or flywheels, hydraulic presses employ Pascal's principle to multiply force through interconnected cylinders and pistons. The fundamental mechanism involves a pump drawing hydraulic fluid and directing it into a cylinder, where pressure builds against a ram that descends onto the workpiece positioned on the press bed.

The distinguishing characteristic of hydraulic forming equipment lies in its ability to deliver consistent force throughout the entire stroke. Mechanical presses experience force variations as the crank rotates, but hydraulic systems maintain programmed pressure levels regardless of ram position. This constant force delivery proves particularly valuable for deep drawing operations, compression molding, and forging processes requiring sustained pressure during material deformation.

Hydraulic press capacity typically ranges from 100 tons to over 10,000 tons for large industrial applications. The force output depends on cylinder bore diameter, system pressure (commonly 2,000-3,000 PSI in industrial applications), and hydraulic pump specifications. Modern forging hydraulic press systems incorporate programmable logic controllers (PLCs) enabling precise pressure control, position monitoring, and automated cycle programming.

The control architecture of contemporary hydraulic metal forming equipment includes safety interlocks, emergency stop circuits, and redundant monitoring systems. Operators interface through human-machine interfaces (HMIs) displaying real-time parameters including pressure, stroke position, cycle count, and fault diagnostics. These digital control systems represent significant advancements over older manual valve-operated presses, enabling tighter process control and repeatability across production runs.

Types of Forging Hydraulic Press Systems

Frame Configuration Variants

Hydraulic press manufacturers produce several distinct frame configurations, each offering specific advantages for particular applications. C-frame presses feature an open-front design providing convenient access for loading and unloading workpieces. These presses excel in applications requiring frequent operator intervention or when working with oversized materials that prove difficult to maneuver through enclosed press windows. The C-frame construction reduces overall machine weight and foundation requirements compared to enclosed configurations.

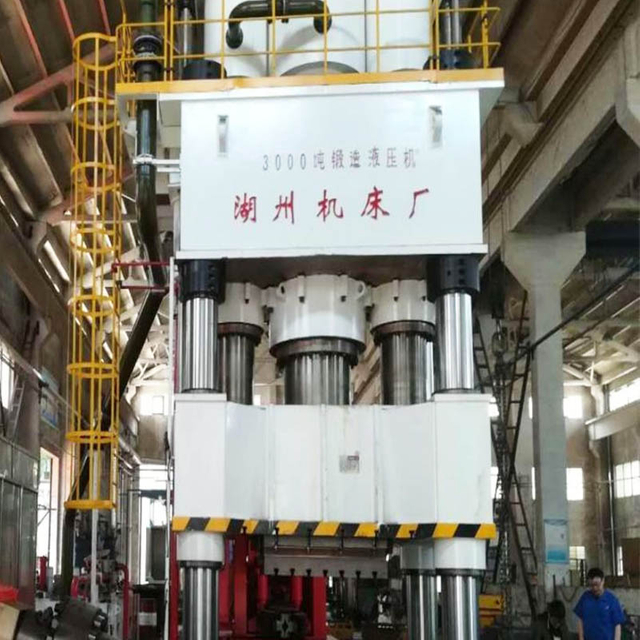

Four-column hydraulic presses provide superior rigidity and precision for high-force applications. Four vertical columns connect the base and crown, guiding the moving crosshead with minimal deflection even under full-load conditions. This configuration suits closed-die forging operations where die alignment and parallelism prove critical for product quality and tooling life. Four-column presses typically offer larger bed dimensions accommodating multiple die stations or large workpieces.

Horizontal hydraulic presses serve specialized applications including tube bending, pipe forming, and processes requiring lateral material movement. These presses incorporate horizontal ram configurations and specialized fixtures for positioning and rotating workpieces during forming operations. While less common than vertical presses, horizontal configurations address specific manufacturing requirements in aerospace, automotive exhaust systems, and structural steel fabrication.

Drive System Classifications

Individual pump systems dedicate hydraulic power to a single press, providing responsive control and independent operation. This configuration suits facilities operating multiple presses with varying cycle requirements or those requiring flexibility for reconfiguration. Individual pump systems offer excellent response time and pressure control but involve higher equipment costs and maintenance complexity compared to shared power systems.

Central power unit configurations connect multiple presses to a shared hydraulic supply system. A large central pump station generates hydraulic power distributed through manifolds to individual press stations. This approach reduces total installed horsepower through load-sharing during non-peak operations and simplifies maintenance by centralizing major components. Central systems prove economical for high-volume production facilities operating multiple simultaneous presses.

Variable displacement pump systems adjust output based on demand, improving energy efficiency by matching power consumption to actual processing requirements. During rapid approach strokes, pumps deliver full flow for speed, then automatically reduce displacement during working strokes where lower flow suffices for maintaining programmed pressure. Modern variable displacement technology significantly reduces energy costs compared to fixed-displacement pump configurations.

Core Benefits of Hydraulic Press Technology

Superior Force Control and Consistency

Hydraulic press technology delivers unmatched force control precision in metal forming applications. The fluid-based transmission system enables operators to program exact pressure setpoints that the system maintains automatically throughout the deformation cycle. This programmatic control eliminates variability inherent in operator-controlled mechanical systems, ensuring each workpiece receives identical processing regardless of operator skill level or fatigue factors.

Force consistency translates directly to dimensional stability and quality uniformity across production batches. When forging aerospace components or automotive safety parts, even minor variations in applied force can create stress concentrations or dimensional deviations that compromise part performance. Hydraulic systems maintain programmed force within ±1% tolerance throughout the stroke, producing consistent results critical for meeting strict engineering specifications.

The ability to hold pressure during material deformation provides additional quality benefits. Many forming operations require sustained force during cooling or crystallization phases to maintain dimensional stability. Hydraulic presses can maintain programmed pressure for extended dwell periods without degradation, while mechanical systems typically return to open position at stroke completion. This capability proves essential for composite materials, heat-treated alloys, and precision components requiring controlled cooling under load.

Versatility Across Material Types

Modern forging hydraulic press systems accommodate diverse material categories from soft aluminum alloys to hardened tool steels. The programmable force and stroke parameters enable a single machine to process multiple material types without mechanical reconfiguration. Manufacturers producing job shop work or frequent product changeovers benefit significantly from this flexibility, reducing capital equipment requirements and floor space consumption.

Material versatility extends to exotic alloys, composites, and specialty metals increasingly common in advanced manufacturing applications. Titanium components for aerospace applications, nickel-based superalloys for gas turbine components, and magnesium alloys for lightweight automotive structures all require specific forming parameters achievable through hydraulic press technology. The precise control capabilities enable manufacturers to develop optimized processing recipes for challenging materials.

Multi-station capability further enhances production flexibility. Some hydraulic press configurations accommodate multiple die sets mounted on rotary tables or shuttle systems, enabling sequential operations without tool changes. Operators can load and unload workpieces at one station while the press performs forming operations at another, maximizing machine utilization while reducing cycle time per part.

Technology and Operating Principles

Hydraulic Circuit Architecture

Understanding hydraulic circuit design helps operators optimize press performance and diagnose operational issues. The fundamental circuit includes several key subsystems working in concert. The power generation section comprises electric motor drives coupled to hydraulic pumps, converting electrical energy into fluid flow and pressure. Pump selection determines maximum flow rate and pressure capability, directly influencing press speed and force characteristics.

The directional control section routes hydraulic fluid to appropriate cylinders based on operator commands or programmed sequences. Solenoid-operated valves respond to control system signals, directing fluid to extend or retract rams, energize clamps, or activate auxiliary functions. Modern proportional valves enable infinitely variable flow control, allowing precise speed regulation throughout the stroke cycle.

Pressure compensation mechanisms maintain stable system pressure despite varying loads. As the ram contacts workpiece resistance, pressure tends to increase momentarily. Without compensation, this pressure spike could exceed safe operating limits or cause quality variations. Pressure compensators sense load conditions and adjust pump output or valve positions to maintain programmed pressure within tight tolerances.

Control System Integration

Contemporary forging hydraulic press systems integrate multiple control layers ensuring safe, efficient, and repeatable operation. The machine control level includes PLCs executing stored programs controlling valve sequences, monitoring safety circuits, and managing operator interfaces. These industrial controllers provide deterministic response times essential for consistent cycle timing and reliable safety system operation.

Process control functions operate above basic machine control, managing pressure profiles, position sequences, and quality monitoring. Advanced systems incorporate adaptive control algorithms that adjust parameters based on sensed material properties or previous cycle results. Statistical process control (SPC) functions collect data across production runs, alerting operators to trends indicating process drift before out-of-specification parts result.

Human-machine interfaces display operational parameters, diagnostic information, and programming functions through graphical screens. Operators access setup screens for configuring new part programs, monitoring screens displaying real-time cycle data, and diagnostic screens identifying fault conditions. Touchscreen interfaces have largely replaced dedicated buttons and indicators, reducing panel complexity while expanding functionality.

Applications Across Industries

Automotive Manufacturing Applications

The automotive industry represents one of the largest markets for forging hydraulic press technology. Vehicle manufacturers and tier-one suppliers rely on hydraulic presses for critical structural components including suspension control arms, engine cradles, crossmembers, and chassis crossmembers. These components require exceptional strength-to-weight ratios achievable only through controlled forging processes that align material grain structure with loading directions.

Engine components including connecting rods, crankshaft counterweights, and transmission housings undergo hydraulic forming operations producing near-net-shape parts requiring minimal subsequent machining. The ability to produce complex geometries in single press operations reduces material waste and machining costs compared to fabrication methods requiring multiple components and fastening operations.

Interior structural reinforcement panels, instrument panel supports, and door impact beams employ hydroforming processes where hydraulic pressure deforms sheet metal into shaped dies. Hydroformed components achieve complex curvatures impossible through conventional stamping, reducing part counts while improving structural performance. The automotive industry's continued focus on vehicle lightweighting drives increased adoption of hydroforming technology for body structure optimization.

Aerospace and Defense Applications

Aerospace manufacturing demands exceptional material properties and geometric precision achievable only through advanced forging techniques. Hydraulic press systems produce titanium and high-temperature alloy components for airframe structures, landing gear assemblies, and engine pylons. The controlled deformation processes develop optimal grain structures providing maximum strength and fatigue resistance required for flight-critical applications.

Fan blades, compressor discs, and turbine housings undergo isothermal forging in hydraulic presses where precise temperature control maintains material temperature throughout the deformation process. Isothermal conditions enable complex geometries while preventing temperature gradients that create residual stresses or property variations. Specialized hydraulic systems maintain die temperatures within narrow ranges using embedded heating elements and thermal monitoring.

Satellite components, rocket motor casings, and missile guidance structures employ hydraulic forming and superplastic forming processes producing lightweight structures from aluminum and titanium alloys. These aerospace-specific applications require presses with exceptional precision, cleanliness controls, and documentation capabilities meeting stringent quality assurance requirements.

Competitive Comparison

The comparison demonstrates Huzhou Press advantages across critical procurement criteria. Superior force capacity enables processing larger workpieces or achieving higher productivity through reduced press passes. Advanced PLC-based control systems provide precision and repeatability exceeding competitors relying on basic automation. Lower force tolerances translate to better part quality and reduced scrap rates. Significantly reduced maintenance costs and extended warranty coverage reduce total cost of ownership over equipment lifetime.

Market Trends and Industry Outlook

Industry 4.0 Integration

The manufacturing industry continues accelerating Industry 4.0 adoption, with hydraulic press technology advancing correspondingly. Smart press systems incorporate sensors throughout hydraulic circuits, structural members, and tooling to capture comprehensive operational data. This sensor data feeds analytics platforms identifying optimization opportunities, predicting maintenance requirements, and enabling remote monitoring capabilities.

Predictive maintenance represents one of the most valuable Industry 4.0 applications for hydraulic press operations. Continuous monitoring of hydraulic fluid condition, filter status, seal wear, and component vibration enables maintenance scheduling based on actual component condition rather than arbitrary intervals. This approach reduces unexpected downtime while avoiding unnecessary preventive maintenance on components still performing adequately.

Digital twin technology creates virtual press models reflecting actual machine behavior captured through sensor data. These digital representations enable process simulation, optimization studies, and troubleshooting without interrupting production. Engineers can explore "what-if" scenarios predicting outcomes of parameter changes or new product introductions before implementing changes on physical equipment.

Global Market Expansion

The global industrial press market continues growth driven by automotive production increases, infrastructure development, and manufacturing expansion across emerging economies. Asia-Pacific regions, particularly China and India, represent the fastest-growing markets as domestic manufacturing capabilities expand. European and North American markets focus on advanced technology adoption and equipment modernization rather than capacity expansion.

Market analysts project continued annual growth of 4-6% through 2030, with hydraulic press technology maintaining its position as the preferred solution for heavy-duty forming applications. Electric vehicle production drives specific demand for new press applications including battery housing forming, motor housing fabrication, and body structure assembly. These emerging applications require press capabilities beyond traditional automotive stamping equipment.

Environmental regulations increasingly influence press technology development and procurement decisions. Energy efficiency improvements reduce operational costs while aligning with corporate sustainability objectives. Hydraulic system advances including variable displacement pumps, regenerative circuits, and sleep modes reduce energy consumption significantly compared to legacy equipment. Manufacturers prioritize equipment demonstrating measurable environmental benefits alongside performance specifications.

Buying Guide for Procurement Managers

Assessing Production Requirements

Successful hydraulic press procurement begins with thorough analysis of production requirements. Engineers should document current and projected production volumes, part geometries, material specifications, and quality requirements. This assessment identifies minimum press capacity requirements while providing context for evaluating different press configurations and feature options.

Force capacity calculations should include safety margins accommodating material variations and process optimization. Standard practice recommends selecting presses with rated capacity 20-30% above calculated maximum requirements. This margin provides operational flexibility for heavier-than-expected materials, unexpected hardening in material lots, or future product modifications requiring additional forming capability.

Cycle time requirements influence press selection and configuration options. High-volume production may justify advanced control systems and automation reducing operator intervention. Job shop operations with frequent changeovers prioritize flexibility and quick setup capabilities. Analyzing actual cycle time requirements prevents over-specifying equipment for applications not utilizing advanced features or under-specifying equipment that cannot meet production targets.

Evaluating Supplier Capabilities

Supplier evaluation should extend beyond equipment specifications to assess manufacturing capabilities, service infrastructure, and financial stability. Factory tours reveal manufacturing quality, assembly practices, and testing procedures confirming equipment will meet published specifications. Suppliers with modern manufacturing facilities and comprehensive testing demonstrate commitment to quality producing reliable equipment.

Service and support infrastructure proves critical for minimizing downtime when equipment issues arise. Evaluate supplier response capabilities including regional service presence, spare parts availability, and technical support access. Suppliers offering comprehensive training programs ensure operators develop proper skills while maximizing equipment utilization. Extended warranty options and preventive maintenance contracts provide additional protection for significant capital investments.

Financial stability assessment ensures suppliers remain viable throughout equipment warranty periods and beyond. Request financial references and investigate supplier history, ownership structure, and market position. Equipment from financially stable manufacturers provides assurance of ongoing support, spare parts availability, and technology updates throughout equipment lifetime.

Operational Best Practices

Preventive Maintenance Scheduling

Establishing comprehensive preventive maintenance schedules ensures reliable press operation while minimizing unexpected downtime. Daily operator inspections should verify hydraulic fluid levels, check for leaks, and confirm normal operational sounds. Operators should report any abnormalities immediately for investigation before potential failures escalate.

Weekly maintenance activities include filter inspection and replacement based on differential pressure indicators rather than arbitrary intervals. Hydraulic fluid sampling for laboratory analysis provides condition data enabling oil change decisions based on actual fluid properties rather than calendar intervals. Component wear patterns identified through regular inspection inform long-term maintenance planning and budget forecasting.

Monthly and quarterly maintenance addresses higher-frequency wear items including seal replacement, valve servicing, and alignment verification. Systematic documentation of maintenance activities builds historical records enabling trend analysis and reliability improvement. Maintenance records also support warranty claims and provide evidence of proper care supporting any future equipment disputes.

Operator Training and Safety

Comprehensive operator training programs ensure safe, efficient press operation while protecting equipment investments. Initial training should cover operating procedures, safety protocols, emergency procedures, and basic troubleshooting. Operators require understanding of control system interfaces, parameter adjustment procedures, and quality verification methods before assuming production responsibilities.

Ongoing training maintains operator skills while introducing new techniques and safety awareness. Refresher courses address common error patterns, introduce equipment upgrades, and reinforce critical safety requirements. Training records demonstrate regulatory compliance and support continuous improvement initiatives through skills gap identification.

Safety system testing requires regular verification ensuring protection systems function when needed. Light curtains, two-hand controls, emergency stops, and interlocks should undergo periodic testing according to manufacturer recommendations and regulatory requirements. Documentation of safety system verification provides evidence of compliance during safety audits and investigations.

Frequently Asked Questions

What is the typical lifespan of a forging hydraulic press?

With proper maintenance, industrial hydraulic presses typically operate reliably for 20-30 years. Critical hydraulic components including pumps, valves, and cylinders may require rebuilding or replacement during this period, but the press frame and major structural elements maintain integrity throughout extended service lives. Equipment modernization can extend useful life further by updating control systems and hydraulic components while retaining proven mechanical structures.

How often should hydraulic fluid be replaced?

Hydraulic fluid replacement intervals vary based on operating conditions, fluid quality, and manufacturer specifications. Generally, annual fluid analysis determines appropriate replacement timing, with typical intervals ranging from 2,000 to 5,000 operating hours. Systems operating in harsh environments or with frequent temperature cycling may require more frequent fluid changes. Following manufacturer recommendations while relying on condition-based analysis provides optimal fluid management.

What maintenance tasks require professional service technicians?

Major hydraulic repairs including pump overhauls, cylinder rebuilding, and valve manifold servicing typically require professional technicians with specialized tools and training. Electrical system repairs involving control cabinets, servo drives, and motor systems also warrant professional attention. However, routine maintenance including filter changes, fluid additions, and basic adjustments can often be performed by trained operators following documented procedures.

Can hydraulic presses handle different materials without retooling?

Hydraulic press flexibility allows processing various materials by adjusting pressure and speed parameters within the same tooling setup. Material thickness variations may require shim adjustments or minor die modifications, but fundamental retooling proves unnecessary for moderate material variations. Complete material changes requiring different die configurations obviously require tool changes, but within material categories, hydraulic press programmability provides substantial flexibility.

What energy efficiency features should buyers consider?

Variable displacement pumps provide significant energy savings by matching output to demand. Regenerative circuits recover energy during deceleration cycles, feeding it back to the electrical system. Sleep mode features reduce power consumption during idle periods. Heat recovery systems capture thermal energy from hydraulic fluid for facility heating applications. These features vary significantly across equipment options and should be evaluated based on expected operating patterns and energy costs.

How do hydraulic presses compare to mechanical presses for forging applications?

Hydraulic presses offer advantages in force control precision, stroke versatility, and multi-direction capabilities. Mechanical presses provide higher speeds for high-volume simple parts but limited flexibility for complex geometries. For most forging applications requiring precise force control, extended dwell capability, or flexibility across product varieties, hydraulic systems provide superior solutions despite somewhat slower cycle times compared to mechanical alternatives.

Conclusion

Forging hydraulic press technology provides essential capabilities for industrial metal forming operations across automotive, aerospace, and general manufacturing sectors. The combination of superior force control, material versatility, and operational flexibility makes hydraulic presses the preferred choice for demanding forging applications requiring precision and consistency.

When evaluating forging hydraulic press investments, procurement managers should prioritize force capacity adequacy, control system capabilities, and total cost of ownership rather than focusing solely on acquisition prices. Working with established manufacturers offering comprehensive support infrastructure protects significant capital investments while ensuring optimal equipment utilization throughout service life.

The continuing evolution of hydraulic press technology through Industry 4.0 integration, energy efficiency improvements, and advanced control capabilities positions this equipment category for sustained importance in industrial manufacturing. Organizations investing strategically in modern hydraulic press technology position themselves competitively for current production requirements and future market opportunities.
