Free Forging Press Technology: Open Die Forging Process

Introduction

Open die forging, often called free forging, represents one of the oldest and most fundamental metal forming processes in manufacturing history. Unlike closed die forging where metal flows within contained cavities, free forging operations shape workpieces between flat or simple-shaped dies, allowing metal to flow outward during compression. This process enables production of large, critical components for aerospace, oil and gas, power generation, and heavy industry applications where component size and material integrity exceed capabilities of closed die methods.

The global market for open die forging equipment continues expanding as energy infrastructure development and industrial manufacturing growth drive demand for large-scale forged components. Modern free forging press technology incorporates advanced hydraulic systems, precise control capabilities, and automation features enabling manufacturers to produce components meeting increasingly stringent quality specifications. Understanding free forging press capabilities and process requirements helps procurement engineers select appropriate equipment and develop optimized manufacturing approaches.

This comprehensive guide examines open die forging fundamentals, equipment requirements, process considerations, and quality assurance approaches. Industry leaders like Huzhou Press, a professional free forging press manufacturer, continue developing advanced equipment addressing evolving market requirements.

What is Free Forging Press Technology?

Fundamental Principles of Open Die Forging

Free forging press technology utilizes compressive forces applied through dies that do not completely enclose the workpiece during deformation. The operator or automated system positions the workpiece between upper and lower dies, then applies controlled force causing the metal to flow outward and reduce height. Multiple positioning and force applications shape the workpiece progressively toward final dimensions through a sequence of forging operations.

The open nature of free forging provides significant manufacturing flexibility unavailable in closed die processes. Workpieces can be repositioned freely between force applications, enabling complex shapes that would require multiple closed die impressions. This flexibility proves essential for custom or low-volume production where die costs would be prohibitive for closed die approaches. Large components including shafts, rings, and discs often require free forging techniques due to size constraints preventing closed die implementation.

Metal flow characteristics in free forging differ significantly from closed die processes. Material flows preferentially toward areas of least resistance, typically outward rather than into contained cavities. Understanding and predicting this flow behavior enables skilled operators to achieve desired shapes through strategic positioning and force application sequences. Modern process simulation tools assist operators in developing optimal forging sequences while reducing trial-and-error approaches.

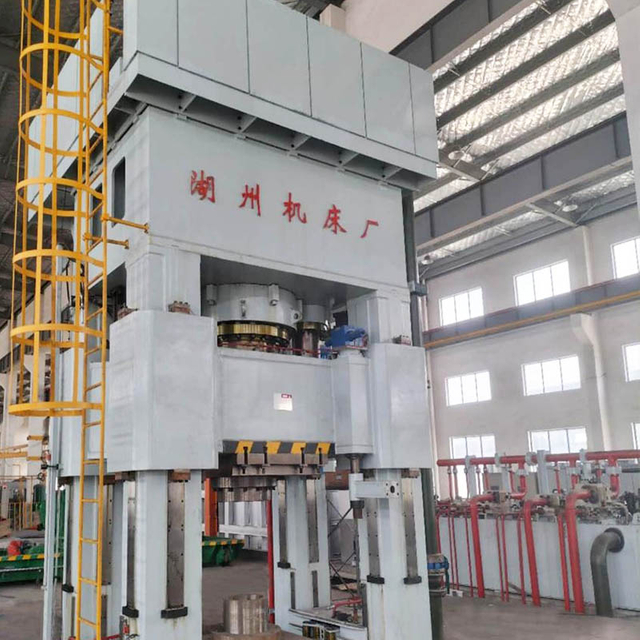

Hydraulic Press Configurations for Free Forging

Hydraulic free forging presses offer distinct advantages for open die operations compared to mechanical alternatives. The ability to apply controlled forces at variable speeds enables operators to optimize deformation rates for material characteristics and part requirements. Hydraulic systems maintain programmed force levels throughout dwells, essential for achieving proper material consolidation and grain structure development in critical applications.

Multi-directional force capability expands free forging possibilities beyond simple vertical compression. Lateral forces, orbital movements, and complex force vectors enable shapes impossible through single-direction pressing.Specialized hydraulic arrangements provide independent control of multiple force axes, enabling sophisticated forming strategies addressing challenging component geometries Learn more about our Composite Learn more about our Composite Material Hydraulic Press Material Hydraulic Press.

Free forging press sizing follows different conventions compared to stamping or closed die equipment. Press capacity relates to maximum workpiece weight and cross-sectional reduction achievable, not just force magnitude. Bed dimensions, daylight opening, and stroke length become primary specifications for free forging applications, with force capacity selected to handle anticipated material types and reduction requirements.

Types of Free Forging Operations

Cogging or Draw forging

Cogging operations reduce ingot cross-sections while elongating the workpiece through successive compressions applied along its length. The operator positions the workpiece so dies engage sequential segments, progressively working material from one end to the other. Each compression reduces height while increasing length, with material flow concentrated in the compression zone.

This technique reduces internal voids and consolidates cast microstructures improving material properties. Cogging produces preforms ready for subsequent finishing operations or provides semi-finished shapes for further processing. The process requires careful temperature management to maintain material within appropriate forging ranges, with multiple heating cycles often necessary for large workpieces.

Automated cogging systems utilize programmable logic controllers managing positioning and force sequences across multiple passes. Sensors monitor temperature, force, and position data enabling closed-loop control optimizing deformation parameters. These automation advances improve consistency while reducing operator skill requirements, enabling smaller operators to achieve quality previously requiring highly skilled craftsmen.

Fullering and Edging Operations

Fullering creates grooves or necks in workpieces by concentrating material flow in localized areas. Dies with curved or profiled surfaces gather material from adjacent regions into compressed zones. This technique prepares workpieces for subsequent operations or creates intermediate shapes in forging sequences.

Edging operations compress workpieces laterally, gathering material from one area to accumulate in another. The process redistributes material mass to create desired contours or prepare sections for subsequent forming. Combined fullering and edging sequences enable complex shapes through controlled material redistribution rather than material addition or removal.

These preliminary operations prepare workpieces for finishing operations achieving final dimensions and surface qualities. The combination of cogging, fullering, and edging sequences varies based on starting material geometry and target part configuration. Skilled operators develop intuitive understanding of material behavior enabling efficient forging sequence development.

Core Benefits of Free Forging Technology

Material Property Enhancement

Free forging significantly improves mechanical properties compared to cast or machined starting materials. Compression deformation breaks up dendritic cast structures and consolidates internal porosity, producing more uniform microstructures. Grain flow alignment creates directional property improvements where strength and toughness align with loading directions in service conditions.

Forged components exhibit superior fatigue resistance compared to alternatives, critical for cyclically loaded applications in aerospace, automotive, and industrial equipment. The combination of stress concentration reduction through smooth contours, internal consolidation eliminating defect origins, and optimized grain structure produces components capable of withstanding demanding service conditions.

Material efficiency in forging typically exceeds machining from bar or plate, with net or near-net shaping reducing material waste. While some machining remains necessary for critical surfaces and dimensions, forging provides material utilization advantages particularly significant for expensive alloys. Aerospace and power generation applications routinely specify forged components despite higher initial costs due to life-cycle performance advantages.

Geometric Flexibility and Size Range

Free forging accommodates component sizes impossible through other manufacturing methods. Press capacities ranging from hundreds to thousands of tons enable forging of massive components including turbine shafts exceeding 10 meters in length, ring forgings with diameters of several meters, and thick-walled cylinders for pressure vessel applications. This size range positions free forging as the primary manufacturing method for large-scale industrial equipment.

The flexibility of open dies enables economical production of single items or small batches without die costs limiting economic viability. Prototype components, custom replacements, and specialized industrial equipment often utilize free forging economically despite higher unit costs compared to high-volume closed die production. This flexibility supports maintenance operations where replacement components may be required in quantities of one or few.

Complex geometries achievable through free forging sequences exceed capabilities of simple compression operations. Skilled operators combine multiple techniques including bending, twisting, and complex positioning to achieve shapes approaching finished part requirements. Modern process simulation supplements operator skill, enabling optimization of sequences for challenging geometries.

Technology and Operating Principles

Temperature Management Systems

Maintaining appropriate forging temperatures proves critical for achieving desired material properties and preventing defects. Heating furnace systems must provide uniform temperature distribution throughout workpieces while preventing oxidation and decarburization. Modern furnace designs incorporate automated temperature control, atmosphere management, and heat zone zoning optimizing conditions for various workpiece sizes and material types.

Temperature monitoring during forging operations enables operators to adjust processing based on actual thermal conditions. Infrared pyrometers provide non-contact temperature measurement, while thermocouples embedded in workpieces or dies provide continuous data for automated systems. Temperature gradients through workpiece thickness influence deformation behavior and property development, requiring careful monitoring throughout multi-pass sequences.

Cooling rates following forging significantly influence final properties, with controlled cooling preventing thermal gradients causing residual stresses or distortion. Accelerated cooling may be specified to achieve specific microstructures, while slower cooling rates suit other applications. Heat treatment following forging often provides final property optimization, with forging schedules coordinated with subsequent thermal processing.

Control and Automation Systems

Modern free forging press control systems incorporate programmable logic controllers managing force application, positioning sequences, and process monitoring. Operators program sequences specifying force levels, approach speeds, dwell times, and repositioning moves, with control systems executing sequences automatically while monitoring safety circuits.

Process monitoring systems capture real-time data enabling quality verification and continuous improvement. Force monitoring identifies variations indicating material inconsistencies or tooling problems. Position tracking confirms dimensional accuracy throughout forging sequences. Temperature monitoring ensures workpieces remain within appropriate forging ranges. This data supports statistical process control initiatives while providing documentation for quality assurance requirements.

Advanced automation systems utilize robots or mechanized handling for workpiece positioning, reducing operator fatigue and improving consistency. Automated loading and unloading from heating furnaces, through forging positions, to cooling areas creates integrated manufacturing cells increasing productivity while maintaining quality. While capital costs for automated systems exceed manual operations, productivity and consistency advantages often justify investments for appropriate production volumes.

Applications Across Industries

Power Generation Equipment

Turbine shafts for power generation applications represent one of the most demanding free forging applications. These components require exceptional material properties, precise dimensions, and rigorous quality verification ensuring reliable operation under extreme conditions. Steam turbine shafts may exceed 10 meters in length with diameters exceeding one meter, requiring massive forging equipment and sophisticated manufacturing processes.

Generator rotors, turbine discs, and related components undergo free forging followed by extensive machining and heat treatment. The combination of free forging grain structure optimization and subsequent machining precision produces components meeting stringent specifications for power generation equipment. Quality verification includes ultrasonic testing, magnetic particle inspection, and dimensional verification throughout manufacturing sequences.

Nuclear power applications impose additional requirements including material certifications, manufacturing procedure qualifications, and documentation maintaining traceability from raw material through finished component. Free forging remains essential for these applications due to size requirements and property optimization capabilities.

Oil and Gas Industry Components

Drill strings, wellhead components, and valve bodies for oil and gas applications undergo free forging providing required strength and reliability. Harsh operating environments including high pressures, corrosive fluids, and cyclic loading require components manufactured to exacting specifications. Free forging produces material structures capable of withstanding these demanding conditions.

Tubular products including casings and line pipes utilize specialized forging processes producing seamless products from forged shells. These manufacturing methods provide advantages over welded alternatives where seam integrity concerns limit application suitability. Free forging serves as the initial forming operation, with subsequent processes achieving final dimensions and surface qualities.

Subsea equipment requiring exceptional strength-to-weight ratios employs titanium and high-strength alloy forgings manufactured through free forging processes. Component sizes for subsea applications continue increasing as deepwater development expands, requiring corresponding advances in forging equipment capabilities.

Competitive Comparison

Huzhou Press advantages include superior capacity specifications enabling larger workpiece processing, comprehensive automation options supporting productivity improvements, and advanced control systems providing process optimization capabilities. Extended support availability ensures rapid response when issues arise, minimizing production impacts from equipment problems.

Market Trends and Industry Outlook

Automation and Digitalization Advances

Free forging operations traditionally relied heavily on operator skill, with experienced craftsmen developing intuitive understanding of material behavior enabling efficient production. Modern trends emphasize automation and digitalization reducing skill dependencies while improving consistency. Robotic handling systems, automated temperature management, and process simulation integration transform free forging operations.

Digital twin technology creates virtual representations of forging operations enabling process optimization without interrupting production. Engineers simulate forging sequences predicting material flow, identifying potential defects, and optimizing tool designs before physical implementation. This capability accelerates process development while reducing trial material consumption.

Machine learning algorithms analyze historical production data identifying patterns indicating quality variations or equipment issues. These systems provide early warnings enabling proactive maintenance and process adjustments before defects occur. Integration with manufacturing execution systems enables automated documentation and traceability supporting quality assurance requirements.

Sustainable Manufacturing Initiatives

Environmental sustainability increasingly influences manufacturing decisions including equipment procurement and process selection. Free forging processes offer inherent material efficiency advantages through near-net-shape production reducing machining waste. Equipment energy efficiency improvements reduce operational carbon footprints while lowering energy costs.

Material selection increasingly considers environmental factors including recycled content and end-of-life recyclability. Forging processes accommodate various material categories including recycled scrap, enabling closed-loop material cycles. The durability of forged components supports sustainability through extended service life reducing replacement frequency.

Manufacturing facilities implement environmental management systems addressing energy consumption, emissions, and waste reduction. Equipment selection considers environmental performance including energy efficiency ratings, emissions controls, and waste generation characteristics. These considerations influence procurement decisions alongside traditional performance specifications.

Buying Guide for Procurement Engineers

Equipment Capacity Assessment

Proper equipment sizing requires analysis of current and projected production requirements including maximum workpiece sizes, material types, and production volumes. Capacity assessments should consider both routine production requirements and potential future growth, with equipment procurement decisions often spanning decade-long periods requiring forward-looking analysis.

Force capacity requirements depend on material strength at forging temperatures, desired reduction per pass, and workpiece cross-sectional areas. Different materials require different force levels for equivalent deformation, with higher-strength alloys requiring more capable equipment. Analyzing actual production requirements enables selection of equipment with appropriate specifications without excessive over-specification increasing costs unnecessarily.

Bed dimension requirements follow from maximum workpiece sizes and handling considerations. Workpieces must fit within bed dimensions while allowing clearance for handling equipment and positioning systems. Future product development may require larger dimensions than current production, suggesting consideration of expanded capacity despite higher initial costs.

Process Capability Verification

Equipment procurement should include verification of process capability demonstrating ability to produce required component specifications consistently. Supplier capability assessments include factory acceptance testing producing sample components meeting specification requirements. These demonstrations verify equipment performance before commitment while establishing baseline capabilities.

Quality system evaluation ensures suppliers maintain documented processes, calibrated equipment, and trained personnel supporting component quality. Certifications including ISO 9001 provide baseline quality system verification, while industry-specific certifications address particular application requirements. For critical applications, supplier quality assurance visits verify actual practices supporting certification claims.

Process validation documentation should specify required testing including dimensional verification, material property verification, and non-destructive examination as appropriate for component requirements. Understanding required validation activities enables proper specification development and supplier qualification processes.

Operational Best Practices

Operator Skill Development

Free forging operations benefit significantly from skilled operators understanding material behavior, equipment capabilities, and quality requirements. Training programs should combine theoretical instruction with practical application, developing operator competencies through progressive skill building. Certification programs verify operator capabilities while providing career development pathways.

Mentorship programs pair experienced operators with developing personnel, transferring tacit knowledge difficult to capture in written procedures. These relationships preserve institutional knowledge while developing next-generation capabilities. Operator succession planning addresses demographic challenges as experienced craftsmen approach retirement.

Continuous improvement initiatives engage operators in identifying optimization opportunities and problem-solving activities. Operators closest to daily operations often identify improvements overlooked by engineering or management. Creating channels for operator input while recognizing contributions encourages ongoing engagement with improvement activities.

Quality Control Implementation

Statistical process control provides systematic approaches for monitoring and maintaining quality throughout production. Control charts tracking key parameters identify variations requiring investigation before producing out-of-specification components. Implementing effective SPC requires understanding of process variation sources and appropriate sampling strategies.

Non-destructive examination verifies internal integrity without damaging components. Ultrasonic testing, radiographic examination, and magnetic particle inspection identify internal and surface defects potentially compromising component performance. Examination procedures require qualified personnel following standardized methods, with results documented for quality records.

Dimensional verification ensures components meet geometric requirements. Coordinate measuring machines, optical scanning systems, and traditional measurement methods provide dimensional data for comparison with specifications. Measurement system analysis ensures inspection capabilities provide reliable data supporting quality decisions.

Frequently Asked Questions

What materials are suitable for free forging?

Most engineering materials undergo free forging including carbon steels, alloy steels, stainless steels, titanium alloys, aluminum alloys, and nickel-based superalloys. Material selection depends on application requirements and forging temperature ranges appropriate for each alloy system. Specialist suppliers often focus on particular material categories developing expertise supporting specific industry requirements.

How does free forging compare to closed die forging?

Free forging utilizes open dies allowing material flow outward during compression, while closed die forging constrains material within die cavities. Free forging suits larger components, custom or low-volume production, and initial breakdown of ingot materials. Closed die forging provides higher production rates and closer tolerances for suitable part geometries. Many components undergo both processes sequentially.

What defects can occur in free forging?

Common free forging defects include laps (fold-over of surface material), seams (internal folds), cracks from excessive deformation or temperature extremes, and internal voids from incomplete consolidation. Proper process design, operator skill, and quality verification minimize defect occurrence. Non-destructive examination identifies defects requiring component rejection or repair.

What heating practices ensure proper forging conditions?

Workpieces should reach uniform temperature throughout before forging, with soaking times appropriate for material thickness. Temperature monitoring verifies workpieces remain within appropriate forging ranges throughout processing. Avoid excessive heating causing grain growth or other microstructural degradation. Controlled cooling prevents thermal gradients causing residual stresses or distortion.

How do manufacturers ensure dimensional accuracy in free forging?

Dimensional accuracy results from skilled operator technique combined with measurement verification throughout forging sequences. Intermediate measurements between forging passes enable corrections preventing final dimensions from exceeding tolerances. Process simulation helps optimize sequences for dimensional accuracy. Post-forging machining often provides final precision dimensions where required.

What maintenance extends free forging press life?

Regular hydraulic system maintenance including fluid changes, filter replacements, and leak inspections maintains press performance. Structural component inspection identifies cracks or wear requiring attention. Control system calibration ensures accurate force and position control. Preventive maintenance following manufacturer schedules minimizes unexpected failures while extending equipment service life.

Conclusion

Free forging press technology continues providing essential manufacturing capabilities for large-scale industrial components across power generation, oil and gas, aerospace, and general manufacturing sectors. The combination of size capability, material property enhancement, and geometric flexibility positions open die forging as irreplaceable for many applications despite higher costs compared to alternative manufacturing methods.

Modern free forging operations benefit from advanced hydraulic systems, automation integration, and digital process management improving consistency and productivity. Equipment procurement decisions should consider capabilities extending beyond basic specifications to include automation potential, control system sophistication, and support infrastructure ensuring optimal equipment utilization.

Organizations developing free forging capabilities benefit from partnership with established manufacturers offering comprehensive technical support and process expertise. Professional suppliers like Huzhou Press, an experienced free forging press manufacturer, provide equipment, process development support, and ongoing service enabling manufacturers to achieve production objectives.

The continuing evolution of free forging technology through automation, digitalization, and process optimization ensures this manufacturing method remains competitive for demanding applications requiring exceptional material properties and component sizes. Strategic investment in modern free forging equipment positions manufacturers competitively for current and future market opportunities.
