Introduction

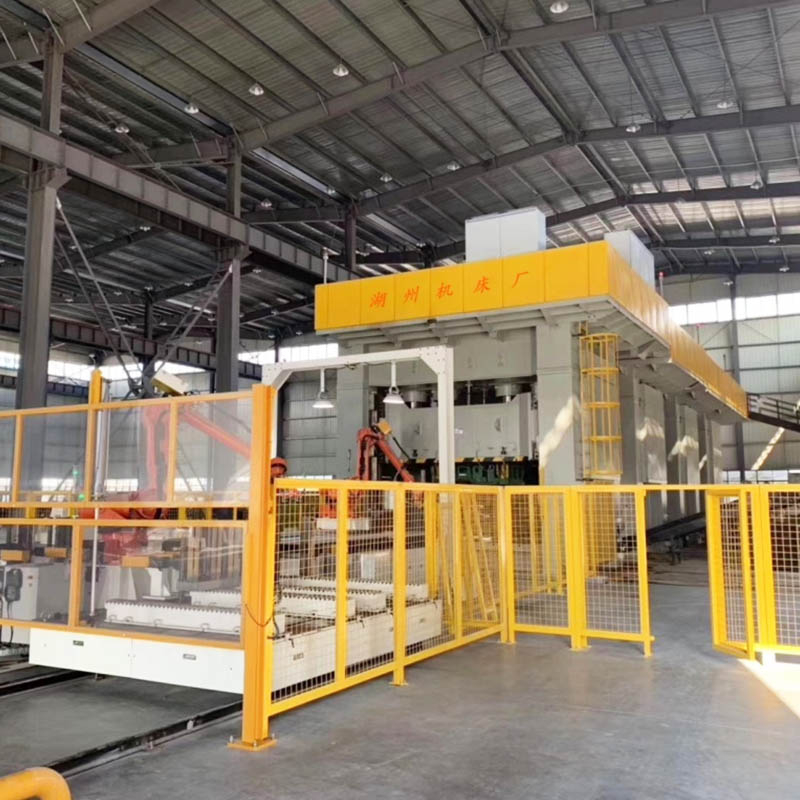

Explore our Single-action Thin Sheet Stamping Hydraulic Press for optimal performance.

Selecting appropriate metal forming equipment represents one of the most consequential decisions for manufacturing operations, influencing production capabilities, product quality, and operational costs throughout equipment service life Learn more about our View our complete product range. The diversity of available press technology, ranging from compact hydraulic bench presses to massive mechanical presses exceeding 10,000 tons capacity, creates significant complexity for procurement teams evaluating options against varied requirements.

Industrial press selection extends beyond basic capacity matching to encompass control sophistication, operational flexibility, maintenance requirements, and supplier ecosystem considerations. Equipment remaining idle due to inadequate capabilities or excessive complexity creates capital inefficiency, while under-equipped operations struggle to meet quality requirements or production targets. Careful requirements analysis and systematic evaluation prevent costly selection mistakes.

This comprehensive guide examines metal forming equipment categories, evaluation criteria, and selection methodologies supporting informed procurement decisions. Understanding how to match equipment capabilities to application requirements enables organizations to optimize investments while achieving production objectives. Professional manufacturers like Huzhou Press, a leading metal forming equipment manufacturer, offer comprehensive product ranges addressing diverse industrial requirements.

Understanding Metal Forming Equipment Categories

Hydraulic Press Systems

Hydraulic presses utilize fluid pressure to generate compressive force through interconnected cylinders and pistons. This force generation method provides distinctive characteristics including programmable force control, consistent pressure throughout stroke, and multi-directional capability options. Hydraulic systems accommodate diverse applications from compact laboratory testing to massive industrial forging operations.

The versatility of hydraulic press technology enables processing across wide material ranges including soft aluminum alloys, carbon steels, hardened tool steels, and exotic alloys for demanding applications. Force and speed parameters adjust programmatically, enabling single machines to process multiple material types without mechanical modification. This flexibility proves particularly valuable for job shop operations with diverse product portfolios.

Hydraulic press control systems range from basic manual valve operation to sophisticated programmable controllers managing complex sequences with precise force, position, and timing control. Modern systems incorporate human-machine interfaces displaying real-time parameters, enabling operators to monitor and adjust processing conditions efficiently. Advanced control capabilities support automation integration, quality monitoring, and production data collection for continuous improvement initiatives.

Mechanical Press Systems

Mechanical presses generate force through stored energy in flywheels released through controlled clutch engagement. The rotating mass provides high-speed force application suitable for high-volume production of simpler parts. Mechanical press cycles complete rapidly, enabling high production rates for appropriate applications where part geometries and material requirements align with mechanical press capabilities.

The kinematic nature of mechanical press force delivery creates force variations throughout the stroke, with maximum force occurring at specific crank positions. This characteristic requires careful die design ensuring operations requiring peak force occur at appropriate crank angles. Material flow characteristics must accommodate force variations throughout the forming cycle.

Mechanical press selection emphasizes speed and productivity for high-volume applications where part complexity remains within mechanical press capabilities. The higher stroke rates compared to hydraulic alternatives provide productivity advantages for suitable part geometries. However, limited flexibility for complex geometries or varied material types restricts mechanical press applicability in diverse manufacturing environments.

Servo Press Systems

Servo press technology combines mechanical press concepts with programmable servo motor drives enabling flexible motion control. Unlike traditional mechanical presses with fixed motion profiles determined by crank geometry, servo presses enable programmable stroke profiles including variable speeds, adjustable dwell positions, and complex motion sequences. This flexibility addresses applications beyond conventional press capabilities.

The programmable nature of servo press motion profiles enables process optimization not possible with fixed-geometry alternatives. Slow approach for positioning, rapid working strokes for productivity, and programmable dwells for specific operations create versatile capabilities across varied applications. Advanced servo presses incorporate learning capabilities optimizing motion profiles based on sensor feedback.

Energy efficiency advantages distinguish servo presses from conventional mechanical alternatives. Regenerative drive systems capture energy during deceleration cycles, feeding electrical power back to facility systems. The ability to operate at reduced speeds during non-working portions of stroke cycles reduces average energy consumption compared to constantly-running mechanical press alternatives.

Core Specifications and Selection Criteria

Force Capacity Requirements

Accurate force capacity assessment forms the foundation of equipment selection, requiring analysis of maximum force requirements for planned production. Force calculations should account for material strength at processing temperatures, part geometry complexity, and deformation requirements. Safety margins accommodate material variations, unexpected hardening, and future product modifications.

Press rated capacity should exceed calculated maximum requirements by appropriate margins, typically 20-30% for most applications. Excessive margins increase equipment costs unnecessarily, while inadequate margins risk equipment damage or quality compromised by insufficient capability. Conservative margins prove particularly important for operations with variable product mixes or uncertain future requirements.

Force capacity relates directly to available die pressures influencing material flow and surface quality. Insufficient die pressure produces incomplete filling, surface defects, and excessive material waste through additional trimming operations. Understanding die pressure requirements for specific materials and part geometries guides capacity selection avoiding performance compromises.

Stroke and Bed Dimension Considerations

Stroke length requirements follow from part height, die heights, and ejection clearance needs. Vertical clearance between closed and open positions must accommodate part and die heights plus clearance for material handling. Additional stroke length provides flexibility for varied part heights and die configurations across product portfolios.

Bed dimensions determine maximum part sizes and die footprints accommodated within press framework. Practical limitations include daylight opening limiting maximum die heights, bolster dimensions constraining die widths, and floor loading considerations for foundation requirements. Larger bed dimensions increase equipment costs and foundation requirements, requiring balanced assessment against actual requirements.

Multi-point bed support options provide enhanced rigidity for eccentric loading conditions where force application occurs away from press center. Standard bed configurations may prove inadequate for offset loading scenarios, requiring upgraded specifications ensuring acceptable deflection under production conditions. Load distribution analysis identifies these requirements during specification development.

Benefits of Strategic Equipment Selection

Production Efficiency Optimization

Appropriate equipment selection enables efficient production meeting quality requirements while maximizing throughput and minimizing operational costs. Equipment with capabilities closely matched to requirements provides optimal balance of performance and cost, avoiding expensive over-specification or inadequate performance from under-specification. Systematic requirements analysis identifies optimal specifications.

Throughput capabilities directly influence production economics, with faster cycle times enabling higher output from equivalent equipment investments. Press selection should account for both productive stroke rates and auxiliary times including loading, unloading, and material handling. Total cycle time analysis provides realistic production rate expectations enabling accurate capacity planning.

Energy consumption represents significant operational cost throughout equipment service life, with efficient equipment providing ongoing savings accumulating substantially over years of operation. Variable frequency drives, servo systems, and energy recovery options reduce energy costs while supporting sustainability objectives. Life-cycle cost analysis should include energy consumption projections alongside acquisition costs.

Quality Performance Assurance

Equipment capabilities directly influence achievable quality levels, with precision control systems enabling tighter tolerances and better consistency than basic alternatives. Quality requirements vary across applications, with critical components requiring precision exceeding capabilities of general-purpose equipment. Specification development should include quality requirements assessment ensuring selected equipment meets application needs.

Repeatability characteristics determine ability to produce consistent parts across production runs and time periods. Statistical process control capabilities require equipment providing predictable, consistent performance enabling meaningful variation monitoring. Equipment selection should consider control system capabilities for data collection and analysis supporting quality management initiatives.

Surface quality requirements influence press specifications including slide parallelism, die cushion systems, and anti-friction options reducing marking and surface defects. Higher surface quality requirements justify investment in equipment features supporting these specifications. Specification development should clearly identify surface quality requirements enabling appropriate equipment matching.

Technology and Control Systems

Programmable Logic Controllers

Modern industrial presses utilize programmable logic controllers managing operational sequences, safety circuits, and monitoring functions. PLC selection influences control capabilities, programming flexibility, and integration potential with facility automation systems. Standard PLC platforms offer advantages including familiar programming environments, established support networks, and compatibility with existing equipment.

Control system specifications should address operator interface requirements, data collection capabilities, and diagnostic functions supporting maintenance activities. Touchscreen human-machine interfaces have largely replaced dedicated buttons and indicators, reducing panel complexity while expanding functionality. Interface design should consider operator requirements including visibility, accessibility, and usability in production environments.

Safety circuit architecture requires careful design ensuring reliable protection for operators and equipment. Safety-rated controllers provide proven functionality for critical safety functions, with redundancy ensuring continued protection despite component failures. Safety system design should comply with applicable standards including OSHA requirements and industry-specific regulations.

Process Monitoring and Data Collection

Real-time monitoring capabilities enable operators to observe processing conditions and respond to variations before quality problems develop. Force monitoring identifies material inconsistencies or tooling problems causing process variations. Position monitoring confirms dimensional accuracy throughout forming sequences. Temperature monitoring ensures appropriate thermal conditions for material processing.

Data collection systems capture production information supporting quality documentation, process optimization, and maintenance planning. Manufacturing execution system integration enables automated production tracking, labor tracking, and material consumption recording. Comprehensive data collection supports regulatory compliance for industries with traceability requirements.

Statistical process control implementations require appropriate data collection enabling variation analysis and trend identification. Control chart generation from collected data identifies processes requiring attention before producing out-of-specification output. SPC implementation requires both technical capabilities and organizational commitment to using collected information for continuous improvement.

Applications Across Industries

Automotive Component Manufacturing

Automotive manufacturers utilize diverse press technologies addressing varied component requirements across vehicle production. Structural components requiring high strength employ hot stamping and advanced high-strength steel forming with specialized equipment configurations. Interior and exterior panels utilize stamping presses optimized for surface quality and productivity. Powertrain components employ forging and forming operations with equipment matched to specific requirements.

The automotive industry's volume requirements drive equipment selections emphasizing productivity and consistency. High-volume models may utilize dedicated press lines operating continuously for years producing identical components. The scale of automotive press operations often justifies specialized equipment unavailable for lower-volume applications. Multi-point presses with multiple stations perform sequential operations in single press installations.

Electric vehicle production introduces new requirements influencing press equipment selection. Battery housing components require large-format forming equipment with capabilities beyond traditional automotive stamping. Motor housing fabrication utilizes forging and machining combinations requiring appropriate equipment selection. Body structure evolution toward increased aluminum content drives equipment modifications for aluminum forming requirements.

Aerospace Component Production

Aerospace manufacturing employs forging and forming equipment producing critical flight components with exceptional quality requirements. Titanium and high-temperature alloy processing requires specialized equipment maintaining precise temperature control throughout deformation cycles. Isothermal forging processes utilize dies maintained at workpiece temperatures, requiring specialized hydraulic systems with embedded heating and temperature monitoring.

Quality verification requirements for aerospace applications exceed typical industrial specifications, influencing equipment selection for critical characteristics. Forging presses must produce components meeting dimensional tolerances achievable only through precise control capabilities. Non-destructive testing requirements identify appropriate inspection equipment beyond basic production presses.

The aerospace industry's low-volume, high-mix production patterns influence equipment flexibility requirements. Multi-purpose equipment accommodating varied part configurations supports diverse product portfolios without dedicated equipment for each component. Process flexibility enables economical production across part families without extensive changeover activities.

Competitive Comparison

Huzhou Press provides comprehensive specifications addressing diverse requirements while maintaining competitive advantages in control accuracy, energy efficiency, and support infrastructure. The combination of broad capacity range, advanced control systems, and global service presence positions Huzhou Press as preferred supplier for organizations prioritizing total cost of ownership alongside acquisition costs.

Market Trends and Industry Outlook

Industry 4.0 Integration

Press equipment increasingly incorporates Industry 4.0 technologies enabling connectivity, data analysis, and remote monitoring capabilities. Smart press systems generate comprehensive operational data feeding analytics platforms identifying optimization opportunities. These capabilities enable predictive maintenance reducing unexpected downtime while optimizing maintenance resource allocation.

Digital integration extends press equipment beyond standalone operation toward connected manufacturing cells communicating with enterprise systems. Manufacturing execution system integration enables automated production scheduling, quality tracking, and resource allocation. Edge computing capabilities process sensor data locally enabling rapid response while transmitting summarized information to central systems.

Cloud-based analytics platforms aggregate data across equipment fleets enabling fleet-wide optimization insights. Comparative analysis identifies best practices transferable across operations. Machine learning algorithms develop predictive models improving maintenance timing and process optimization. These advanced capabilities require appropriate infrastructure investment alongside equipment acquisition.

Customization and Flexibility

Market trends toward product variety drive equipment selection emphasizing flexibility and rapid changeover capabilities. Presses accommodating multiple die configurations enable economical production across varied product portfolios without dedicated equipment for each component. Quick-change tooling systems reduce changeover times between production runs, improving equipment utilization.

Modular equipment architectures enable configuration optimization addressing specific application requirements. Standard modules combine in various configurations addressing capacity, control level, and auxiliary system requirements. This approach reduces costs compared to fully custom equipment while providing customization addressing particular requirements.

Software-defined functionality increasingly differentiates press equipment, with control system capabilities determining actual performance beyond base mechanical specifications. Upgradable control systems enable capability enhancement without equipment replacement, extending useful life while providing access to advancing functionality.

Buying Guide for Procurement Teams

Requirements Definition Process

Systematic requirements definition prevents common selection errors including over-specification increasing costs or under-specification creating capability gaps. Cross-functional teams including engineering, operations, and maintenance perspectives develop comprehensive requirement documents addressing current and anticipated future needs. Early involvement of potential suppliers provides reality checking against practical constraints.

Requirement prioritization distinguishes essential specifications from desirable features, enabling appropriate trade-off analysis during evaluation. Cost-benefit analysis for higher-specification options identifies circumstances justifying premium investments. Risk assessment identifies requirements with significant consequences if unmet, warranting conservative specifications.

Documentation requirements including quality specifications, regulatory compliance, and traceability needs should inform equipment selection. Industries with specific equipment requirements including FDA-regulated medical device manufacturing or aerospace quality systems require selection aligned with applicable standards. Early identification of these requirements prevents selection decisions incompatible with compliance needs.

Supplier Evaluation Methodology

Structured supplier evaluation ensures consistent assessment across options using objective criteria aligned with requirements. Scoring matrices weight criteria according to importance, enabling systematic comparison across evaluation dimensions. Weighted scoring provides transparency while acknowledging evaluation involves judgment beyond pure numeric comparison.

Supplier capability assessment extends beyond equipment specifications to include manufacturing capabilities, service infrastructure, and financial stability. Factory visits reveal actual practices and quality systems supporting delivered equipment quality. Reference customer contacts provide operational perspectives on supplier performance beyond sales presentations.

Total cost of ownership analysis captures acquisition costs plus ongoing operational, maintenance, and disposal costs throughout equipment life. Energy consumption, maintenance requirements, and expected service life influence total cost comparisons more significantly than acquisition prices for long-lived equipment. Life-cycle cost analysis supports selection decisions aligned with long-term organizational interests.

Operational Excellence

Preventive Maintenance Programs

Comprehensive preventive maintenance programs maintain equipment performance while minimizing unexpected downtime. Maintenance schedules should follow manufacturer recommendations while incorporating operational experience identifying appropriate adjustments. Documentation systems track maintenance activities, enabling trend analysis and continuous improvement.

Condition monitoring technologies including vibration analysis, thermal imaging, and oil analysis provide early warning of developing problems. Implementing condition-based maintenance reduces unnecessary preventive maintenance while ensuring maintenance occurs before failures cause production impacts. These technologies require investment but often prove economical for critical equipment.

Maintenance technician training ensures personnel possess skills required for equipment support. Manufacturer training programs provide comprehensive understanding of equipment systems and troubleshooting procedures. Cross-training across similar equipment enables flexible maintenance resource allocation. Documentation systems preserve institutional knowledge supporting ongoing equipment support.

Continuous Improvement Initiatives

Operational excellence requires ongoing improvement beyond maintenance to include process optimization and efficiency enhancement. Kaizen activities engage operators in identifying improvement opportunities, leveraging front-line knowledge of operational realities. Small improvements accumulate significantly across production volumes and time periods.

Process capability studies quantify current performance, identifying improvement priorities and measuring progress. Capability indices guide improvement investments toward areas providing greatest benefit. Statistical methods ensure improvement activities target significant causes of variation rather than random noise.

Technology monitoring tracks developments potentially providing improvement opportunities. Trade publications, industry conferences, and supplier communications inform awareness of advancing capabilities. Systematic evaluation of new technologies prevents missed opportunities while ensuring adoption decisions follow appropriate analysis.

Frequently Asked Questions

How do hydraulic and mechanical presses differ for my application?

Hydraulic presses provide programmable force control and consistent pressure throughout stroke, suitable for complex geometries and varied materials. Mechanical presses offer higher speeds for high-volume simple parts but limited flexibility and force variations through stroke. Most general-purpose forming applications favor hydraulic capabilities, with mechanical presses suited for specific high-volume applications.

What maintenance does industrial press equipment require?

Daily inspections include fluid levels, leak checks, and operational sound monitoring. Weekly activities address filter inspection and basic adjustments. Monthly and quarterly maintenance covers seal inspection, alignment verification, and lubrication. Major maintenance including pump overhauls and control system updates occurs on multi-year intervals. Comprehensive maintenance documentation supports reliability improvement.

How long does industrial press equipment last?

With proper maintenance, industrial press equipment typically operates reliably for 20-30 years. Major rebuilds may extend useful life further. Control system upgrades often prove economical before complete equipment replacement. Selection decisions should consider life-cycle requirements alongside initial specifications.

What factors influence press selection for aluminum forming?

Aluminum alloys require different force levels than steel due to lower yield strength, but surface quality requirements often prove more demanding. Anti-marking features, precise slide control, and appropriate die materials support aluminum forming requirements. Press stiffness affects part springback control for aluminum's higher elastic recovery.

How do I determine appropriate press capacity?

Calculate maximum force requirements based on material strength, part geometry, and deformation needs. Apply 20-30% safety margins for variations and future requirements. Consider die pressure requirements for material flow and surface quality. Overspecification increases costs unnecessarily, while underspecification risks quality and equipment damage.

What automation options should I consider?

Automation options range from simple part handling aids to sophisticated robotic cells. Selection depends on production volumes, part size and weight, and changeover frequency. High-volume production often justifies automation investments, while job shops prioritize flexibility over automation. Consider both current requirements and future growth potential.

Conclusion

Metal forming equipment selection requires systematic analysis of application requirements, equipment capabilities, and supplier considerations. The diverse press technology options range from compact hydraulic bench presses to massive mechanical forging systems, each offering distinct advantages for specific applications. Matching capabilities to requirements prevents costly over-specification or inadequate performance from undersized equipment.

Modern press technology incorporates advanced control systems, connectivity features, and process optimization capabilities enabling productivity and quality levels impossible with legacy equipment. Industry 4.0 integration transforms press equipment beyond standalone operation toward connected manufacturing systems. These capabilities require investment but provide operational advantages justifying modern equipment selection.

Working with established manufacturers provides access to application expertise, comprehensive support, and reliable equipment meeting quality expectations. Professional suppliers like Huzhou Press, an experienced metal forming equipment manufacturer, offer comprehensive product ranges and application support enabling optimal equipment selection. Strategic equipment investments position manufacturing operations competitively for current and future market requirements.
